Basic

Dimensions (LxWxH)
145.5x55.1x75 in

Cargo Volume
127 ft³

Payload Capacity (Based on basic box model and normal driving condition.)
1100 lbs.

Turning Radius
157 in

Performance

Maximum Speed (Max Speed is set by state regulation for Neighbor Electric Vehicles, it is 25 mph in most states.)
25 mph

Range
109 miles

Grade ability
20%

Acceleration
0-20 mph under 6s

Braking Distance
25-0 mph in 25 feet

Battery and Motor

Battery Type
Lithium-ion

Motor Power
24 kW (Maximum)

Operating Voltage
86.4 VDC

Chassis

Drive
2WD Rear

Tire
175/65 R14

Front/Rear Suspension Type
Leaf spring independent suspension / Transverse coil shock independent

Front/Rear Brake Type
Four wheel disc

Standard Features

12-volt Power Outlet

Dome light

Overhead console storage

Rubber floor mat

AM FM Bluetooth USB stereo

Electrical power steering

Passenger vanity mirror

Seat with headrest

Cabin heater

Ignition key

Passenger side mirror

Sun visors

Central locking system

Locking cabin doors

Power brakes

Windshield defroster

Cup holder

Onboard diagnostics

Rear view camera

Windshield wiper

Optional

Electric dump bed

Extended range battery packs

Navigation

Telematics

Emergency caution light package

Exterior Work Lights

Refrigerated cargo box

Extended life and range with lithium battery pack

Law enforcement/ Security package

Reverse Buzzer

Dimesions

Cabin Width: 43" (1080mm)

Wheelbase: 87" (2200mm)

Seat: 1
Vehicle with Cargo Box: 137" x 43" x 67"
(3474mm × 1080mm × 1700mm)

Box Size: 70" x 42" x 40"
(1760mm × 1060mm × 1020mm)

Front Wheel Track: 36" (920mm)

Rear Wheel Track: 36" (920mm)

Vehicle Chassis only: 133" x 43" x 66"
(3380mm × 1080mm × 1685mm)

Range: (CLTC) 49mi (80km)

Weight

Curb Weight 1389 lb (630kg)

Payload 496lb (225kg)

Gross Weight 2094lb (950kg)

Motor

Type Permanent Magnet

Nominal Power / Peak Power 7.5/15

Climbing Gradient (%) 25

Tractor Axle Rear

Battery

Type Lithium

Battery Heating Yes

Capacity 8.4kWh

Charging

Charging Power AC 2kW

Charging Time <6h

Voltage

High Voltage 96V

Low Voltage 12V

Front Suspension

Type MacPherson Independent

Rear Suspension

Type Leaf Spring

Gear Ratio 10

Wheel

Rim - Material Steel

Rim - Size 4.00Bx12

Tire - Size 135/70R12

Braking System

Type Hydraulic

Power assist Electric Vacuum

Brake Front Disc / Rear Drum

Parking Brake Foot pedal

EPB with auto hold

Air Conditioner Optional

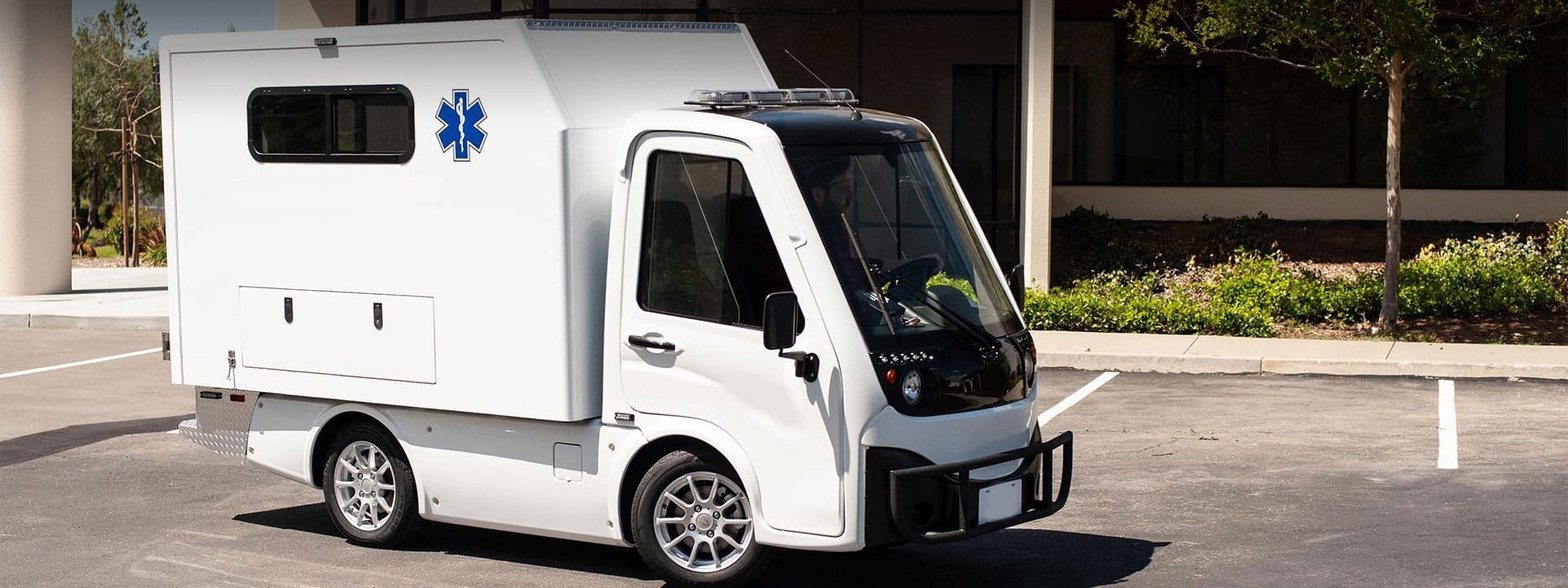

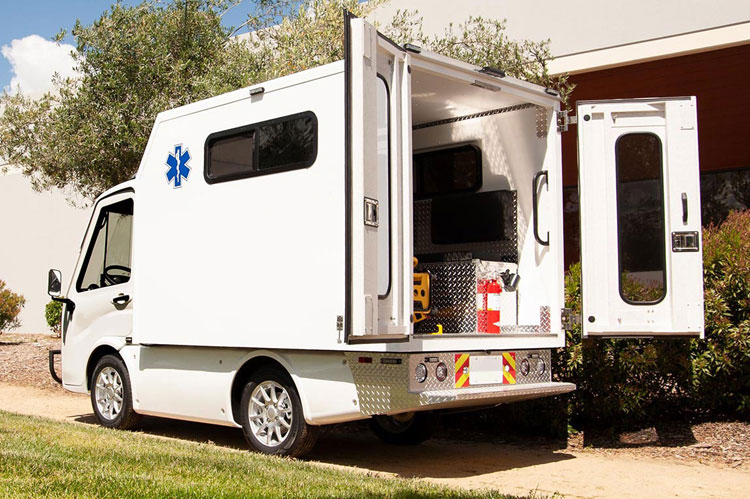

This low-cost, ultra low maintenance truck has an estimated 144 MPGe, up to 4.3 M/KwH. It has a variable range of 40–120 miles, and an adjustable top speed of up to 40 mph on closed campuses. The ambulance boasts an ultra tight turning radius of 12.5 feet, making it ideal to operate in small spaces. Easy to charge, the plugs into any 110v outlet.

Package Specifications

ASAP MEDSTAT MS500 EMS Module

All Aluminum Construction

60" Bench Seat With Seat Belts, Pads And Storage

Gurney Mounting System

Side Access Storage Door

Rear Double Doors With Tinted Windows

Interior, Entry And Ceiling Grab Handles

Tinted Sliding Windows

Fully Insulated

IV Holder

12 Volt Power Outlet— In Patient Compartment

Led Interior And Exterior Lighting

Extended Rear Step Bumper (+6 Inches)

2 lb ABC Fire Extinguisher

Package Options

Siren / PA System

Vehicle Specifications

Check local laws for on-road use restrictions.

Dimensions
149.5 in x 53.5 in x 78 in

Accesories

Many Package Options may be purchased and added after delivery of vehicle. Please inquire about adding on Package Options as Accessories.
